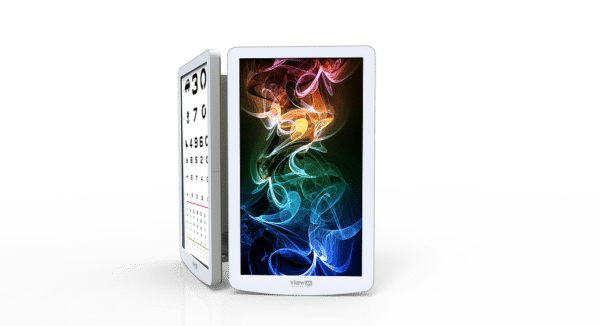

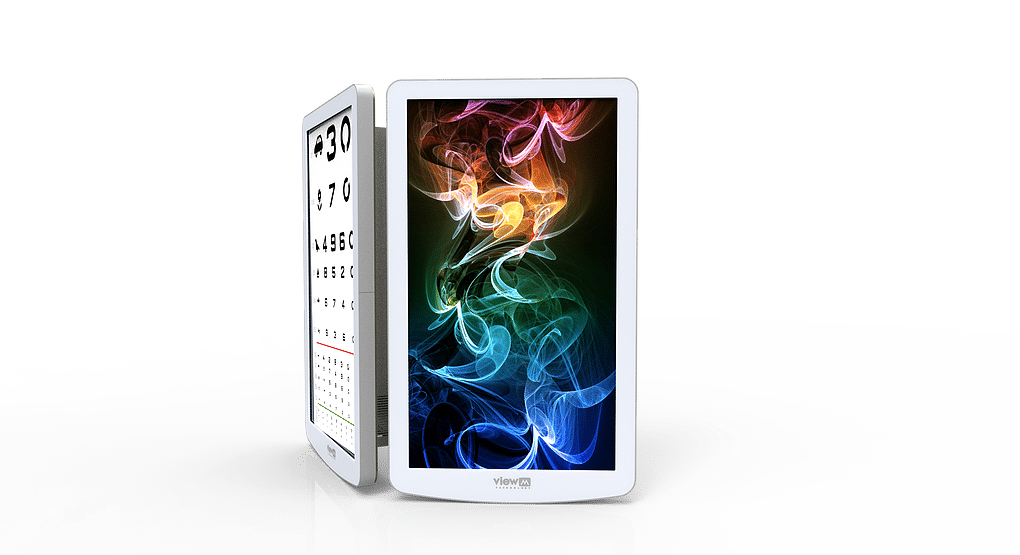

SCS-3200 Pantalla de Optotipos LCD 32″

SCS-3200 pantalla de optotipos visual View 32″ LCD touch

SKU: SCS-3200 Categorías: ,

Descripción del producto

SCS-3200 pantalla de optotipos visual View 32″ LCD touch

Full Chart
SCS-3200 supports 32-inch vertical full HD screen that gives more convenient environment to the doctors.

Also random full chart function helps examiners to do the more precise test while using it

Sophisticated modern design
Sophisticated black silver bezel design can be placed in any test room.

In order to concentrate children’s patient, SCS-3200 provides

slide animation functions. Also it shows number of ophthalmic symptoms

with prescriptions, when the chart is not used for period of time.

Slide function
catalogue_en_SCS-3200_D_20151120_ver2.pdf
VLC-2400

* SCS-3200 제품에만 해당

catalogue

SCS-3200
SPECIFICATION
Software App based on winCE

Panel Type 32 inch WUXGA LED Backlight

Resolution 1080 x 1920 Pixels

Window Size 400 (W) x 700 (H) mm

Brightness Max 350 cd/㎡

Chart Type Full Chart, Landolt Ring, Snellen, Opto type(Korean, English, Number, Russian, Japanese), Children, Masking(Horizontal, Vertical, Single), Special Opto type(only Red/Green),
ETDRS, R/G 3D, Amsler Grid, Color Blindness

Number of Channel 8 EA

Convertion 1 Frame / 0.02 Sec

Distance 1.5M ~ 6M (0.25 or 0.5 Step)

Power AC 110V ~ 240V 50 / 60 Hz

Consumption Less than 80W

Body Size / Weight 470 (W) x 800 (H) x 90 (D) mm / 12kg

Remote Size / Weight 65 (W) x 195 (H) x 20 (D) mm / 158g

Wireless Main Remote Control : IR DA / 3D Remote Control : RF

Compatibility USB 2.0 Port

Accessories Main Remote Control, Wall mount, Power Cord, Manual

Información adicional del producto

Peso 22 kg
Fabricante

País de orígen
